Universal APs Outdoor

AP4060

Flexible, Highly Secure and Cloud-Managed, Wi-Fi 7 Weatherized Access Point

View Datasheet Contact Sales

Product Highlights

Key Highlights
  • Wi-Fi 7 technology - high throughput, low latency and extended range
  • Manageable by Extreme Platform ONE™, ExtremeCloud™ IQ / Controller
  • Reduced mean time to resolution with AI
  • Extreme Platform ONE™ Security policy enforcement, Fabric integration
  • Simultaneous IT & OT using dual radios
  • Standard power for US and Canada

AP Radio Features

  • 2x2:2: quad radio design including dedicated security sensor, optional dual 5GHz, and Multi-Link Operations (MLO)

Operational modes

  • Mode 1: 2.4 GHz /5 GHz/6 GHz data radios and sensor
  • Mode 2: 2.4 GHz, and dual 5 GHz and sensor

Cellular Coexistence Filter (CCF)

  • Minimizes the impact of interference from cellular networks

Fully Functional with 802.3at

Designed for Harsh Environments

  • IP67 Weatherized
  • Extended temp range -40°C to +60°C

6 GHz is country dependent

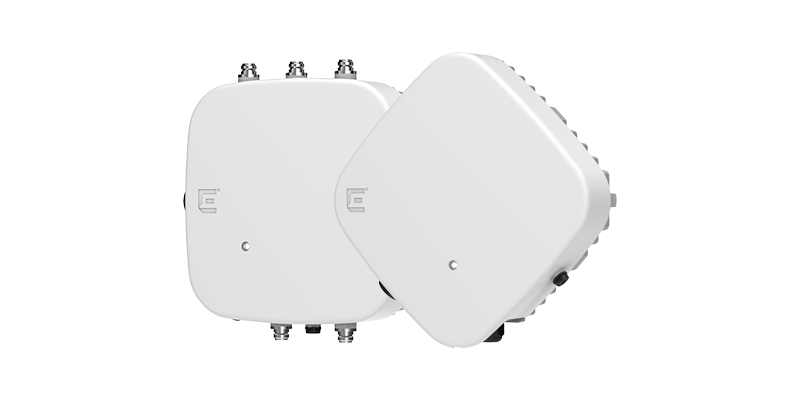

AP4060_product shot.png

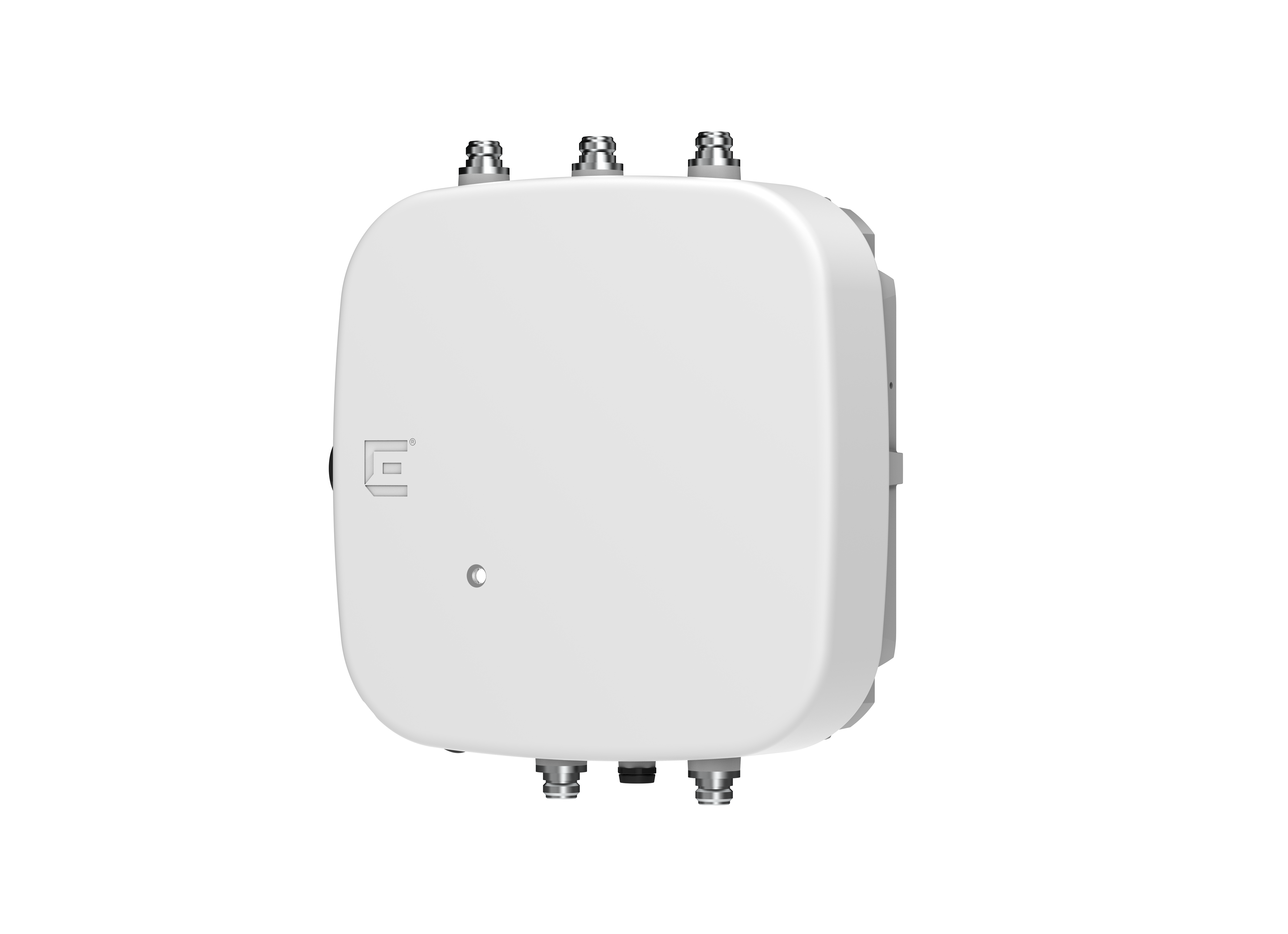

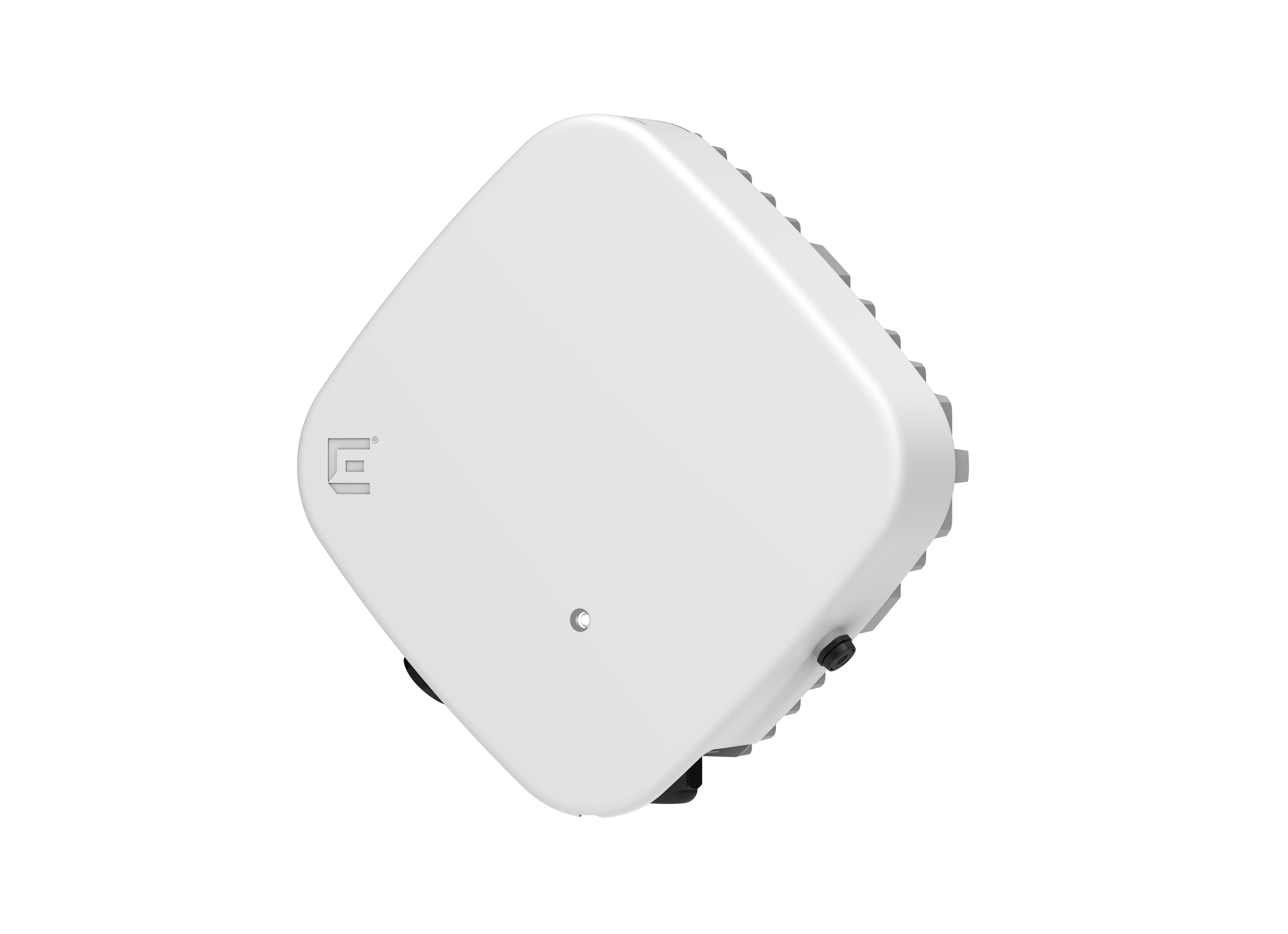

The AP4060 is a Wi-Fi 7 weatherized access point (AP) that delivers increased performance and security across a range of use cases for a seamless wireless experience. Manageable by Extreme Platform ONE™, ExtremeCloud™ IQ / Controller, this AP is built on industry-leading Universal Hardware technology, enabling investment protection and deployment flexibility. It simplifies operations, reduces risk and saves time by leveraging Extreme’s AI. The AP4060 can also automatically enforce secure access rules from Extreme Platform ONE™ Security.

The AP4060 Wi-Fi 7 Access Point is engineered for peak performance in enterprise environments, featuring a quad-radio design with three 2x2:2 radios. It is designed for harsh environments, from hurricane force winds to sub-zero temperature. The AP4060 is IP67 rated and extends Extreme’s Wi-Fi 7 coverage in a sleek form factor.

With support across the 6 GHz, 5 GHz, and 2.4 GHz bands, it delivers the next generation of high-efficiency, high-performance connectivity using 802.11be, also known as Extremely High Throughput (EHT). In addition to its advanced speed and bandwidth capabilities, the AP4060 includes a full-time dedicated security sensor, ensuring robust protection while maintainingoptimal network performance.

Extreme offers one of the most extensive selections of switches to connect Wi-Fi 6E and Wi-Fi 7 access points. The switches that connect the APs include flexible PoE that offer 30/60/90 watts of power on their multi-gigabit ports to support the higher power requirements of 6 GHz Wi-Fi.

Benefits

The AP4060 can be flexibly managed by Extreme Platform ONE or ExtremeCloud IQ from the cloud or on premises.

Extreme Platform ONE™ is an enterprise connectivity platform that integrates networking and security with AI into one powerful and radically simplified experience and licensing model. It supports NetOps, SecOps, and business teams with built in automation and enables organizations to regain control, unlock innovation, and boost productivity through:

  • One integrated experience that is easy to use.
  • Automation though built-in AI that boosts productivity, reducing cycle time for many tasks from hours to minutes.
  • Simplified licensing that makes the solution as easy to buy as it is to use.
  • AI driven workflows for configuration, deployment, and management.
  • Inventory management simplifies budgeting, planning and compliance.

Wi-Fi 7 (802.11be) introduces benefits across the 2.4 GHz, 5 GHz, and 6* GHz bands with reduced latency and jitter for time-sensitive networking applications. Wi-Fi 7 capabilities such as 320 MHz channels, 4K-QAM, and Multi-Link Operation (MLO) helps enable superior speeds and high-density performance. The 6 GHz band enables improved quality of service (QoS) in dense environments, new applications and use cases, and an improved user experience.

* Country dependent

The Wi-Fi 7 AP4060 features two distinct software defined radio (SDR) modes for different deployment scenarios. Dual 5 GHz supports high-density deployments with a dedicated sensor. Featuring quad radios, it can transmit with multiple combinations of three data radios across the 2.4 GHz, 5 GHz, and 6 GHz bands in addition to an always-on dedicated tri-frequency sensor. The AP4060 intelligently monitors the software-configurable radios, enabling network managers to configure network RF technology based on the user environment and to configure the APs in different modes as required. The AP4060 features superior tri-frequency radio performance with a multiband filter that reduces interference and enables 5 GHz and 6 GHz operation across all available channels without restrictions.

The AP4060 features dual IoT radios enabling multiple concurrent IoT use cases and eliminates the need for an overlay infrastructure with improved performance and reduced complexity of multiple wireless networks. To support both IoT and guest engagement services, the AP4060 integrates Bluetooth® to connect with IoT devices wirelessly and to engage loyal customers with Apple iBeacon. Enterprises can use API-driven applications to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app, download pages, captive portals, or site-specific information.

The AP4060 delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Also, it acts as an enforcement point for Extreme Platform ONE Security – the industry’s most complete network access security solution. Extreme Platform ONE Security provides automated security policy enforcement and manages SSIDs to enforce policies on the AP4060. Extreme Fabric adds additional security by automating provisioning and deployment by connecting to a Fabric -enabled switch. Additionally, the AP supports a stateful L2-L7 DPI firewall for context-based access security, tri-frequency security, a location analytics sensor, and much more. The AP4060 also includes a unique dedicated security sensor for rich insights and threat detection when paired with Extreme AirDefense.

The AP4060 is built with Extreme’s Universal Hardware technology that allows multiple deployment use cases through a simple change of the software or feature set. This technology allows the user to choose between operating systems tailored to work with cloud- or controller based management. The desired persona can be selected at startup or changed later. Universal hardware platforms increase flexibility and reduce obsolescence by allowing customers to gradually adopt new technologies without the need for a rip and replace approach to their hardware.

Offered with a Universal World SKU AP, the AP4060 allows customers, partners, and distributors to order one model for any region where Extreme Networks products are sold, replacing the age-old problem of country-specific models.
