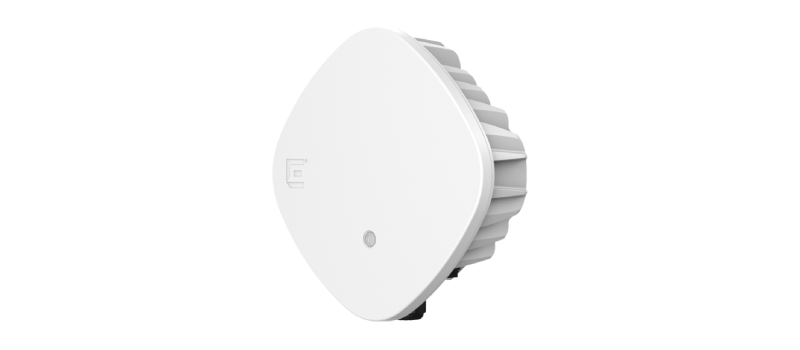

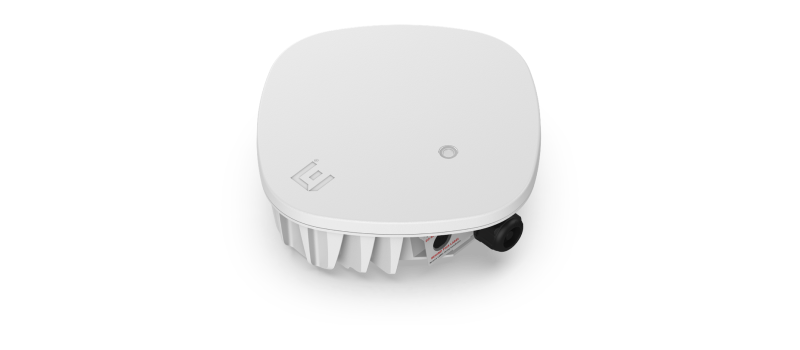

AP3060
Enterprise Wi-Fi 7 Weatherized Access Point
Product Highlights
- Affordable outdoor Wi-Fi 7 technology in a compact form factor
- Managed with Extreme Platform ONE™, ExtremeCloud™ IQ, and ExtremeCloud IQ Controller
- Extreme Platform ONE Security Policy Enforcement
- Simultaneous IT & OT using dual radios
Wi-Fi 7 Radio Technology
Dual-Radio Design
- 2.4 GHz + 5 GHz (2x2:2)
- 5 GHz + 5 GHz (2x2:2)
- 5 GHz + 6 GHz* (2x2:2)
Designed for Harsh Environments
- IP67 Weatherized Enclosure
- Extended temp range: -40°C to +60°C
Cellular Coexistence Filter (CCF)
- Minimizes the impact of interference from cellular networks
Power Efficient
- Full functionality with 802.3af power
- 6 GHz Standard Power available for US and Canada
*6 GHz operation is country-dependent
The AP3060 redefines value in outdoor wireless networking by delivering enterprise-grade Wi-Fi 7 performance in a compact, rugged, and cost-effective platform. Designed for organizations that need reliable outdoor coverage without sacrificing advanced capabilities, the AP3060 combines next-generation wireless technology, integrated security, and cloud-based management into a single solution.
Built on Extreme’s Universal Hardware architecture and managed through Extreme Platform ONE™ or ExtremeCloud™ IQ, the AP3060 helps organizations simplify operations, reduce complexity, and accelerate deployments through AI-driven automation and centralized visibility.
Engineered for demanding outdoor conditions, the AP3060 combines a compact, IP67-rated enclosure with Wi‑Fi 7 performance across the 2.4+5, 5+5, or 5+6* GHz bands. With dual 2x2 radios and support for standard power 6 GHz operation via integrated GPS and Automated Frequency Coordination (AFC), it extends high-speed, low-latency connectivity to challenging environments while minimizing interference and increasing capacity. Ideal for campuses, hospitality venues, transportation hubs, manufacturing sites, and outdoor public spaces, the AP3060 ensures consistent coverage for user devices, IoT systems, and latency-sensitive applications.
Benefits
The AP3060 can be flexibly managed by Extreme Platform ONE or ExtremeCloud IQ from the cloud or on-premises.
Extreme Platform ONE is an enterprise connectivity platform that integrates networking and security with AI into one powerful and radically simplified experience and licensing model. It supports NetOps, SecOps, and business teams with built-in automation and enables organizations to regain control, unlock innovation, and boost productivity through:
- One integrated experience that is easy to use.
- Automation through built-in AI that boosts productivity, reducing cycle time for many tasks from hours to minutes.
- Simplified licensing that makes the solution as easy to buy as it is to use.
- AI-powered workflows for configuration, deployment, and management.
- Inventory management simplifies budgeting, planning, and compliance.
Wi-Fi 7 (802.11be) introduces benefits across the 2.4 GHz, 5 GHz, and 6 GHz* bands with reduced latency and jitter for time-sensitive networking applications. Wi-Fi 7 capabilities such as 320 MHz channels, 4K-QAM, and Multi-Link Operation (MLO) help enable superior speeds and high-density performance. The 6 GHz* band enables improved quality of service (QoS) in dense environments, new applications and use cases, and an improved user experience.
*6 GHz operation is country-dependent
The Wi-Fi 7 AP3060 features two distinct software-defined radio (SDR) modes for different deployment scenarios. It can transmit with multiple combinations of two data radios across the 2.4 GHz, 5 GHz, and 6 GHz bands. The AP3060 intelligently monitors the software-configurable radios, enabling network managers to configure network RF technology based on the user environment and to configure the APs in different modes as required. The AP3060 features superior dual-frequency radio performance with a multiband filter that reduces interference and enables 5 GHz and 6 GHz operation across all available channels without restrictions.
The AP3060 features dual IoT radios enabling multiple concurrent IoT use cases and eliminates the need for an overlay infrastructure with improved performance and reduced complexity of multiple wireless networks.
To support both IoT and guest engagement services, the AP3060 integrates Bluetooth® to connect with IoT devices wirelessly and to engage loyal customers with Apple iBeacon. Enterprises can use API-driven applications to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app, download pages, captive portals, or site-specific information.The AP3060 is built with Extreme’s Universal Hardware technology that allows multiple deployment use cases through a simple change of the software or feature set. This technology allows the user to choose between operating systems tailored to work with cloud- or controller-based management. The desired persona can be selected at startup or changed later. Universal hardware platforms increase flexibility and reduce obsolescence by allowing customers to gradually adopt new technologies without the need for a rip-and-replace approach to their hardware.
Offered with Universal World SKUs, the AP3060 allows customers, partners, and distributors to order one model for any region where Extreme Networks products are sold, replacing the age-old problem of country-specific models.
The AP3060 ships with integrated GPS to unlock the full benefits of 6 GHz standard power operation in the US and Canada. The GPS in the AP provides precise geolocation to an AFC (Automated Frequency Coordination) service via Extreme Platform ONE or ExtremeCloud IQ, which dynamically assigns approved channels and power levels for optimal performance and regulatory compliance. Please refer to AP3060 technical documentation for more detailed information.
