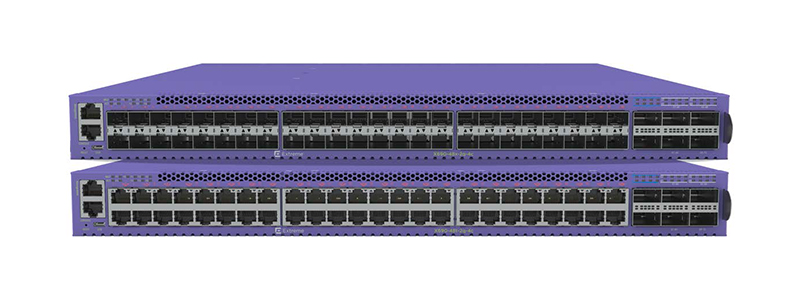

High-performance 48-port 10Gb aggregation and leaf switch
Family of 10Gb/100Gb Switches with Advanced Enterprise Capabilities
Ease of Use — Flexible Management Options
Flexible System Configurations
High-Density, 10Gb Enterprise LAN and Aggregation Switching
The X690 Series products are high-density, purpose-built 10Gb/100Gb switches designed for high-performance enterprise and aggregation applications. The X690 can support a range of interface speeds, including 1Gb, 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb, all in a compact 1RU form factor. This enables the X690 to be flexibly deployed in either Enterprise LAN or high-density top of rack applications.
The X690 can also serve as the controlling aggregation switch within Extreme's Extended Edge Switching solution.
Two models of the X690 are available:
Extreme Networks has developed tools that simplify and help in efficiently managing your network. The ExtremeCloud IQ - Site Engine application suite provides centralized visibility and granular control of enterprise network resources end to end.
The X690 supports Extreme Extended Edge Switching, an innovative solution that simplifies the deployment and operation of edge switches. With this solution, the X690 can be meshed with economical V300 and V400 Series access devices to form a single logical switch. Advanced X690 services can then be seamlessly delivered to the V300 or V400 edge switches. The result is a simplified operational model that reduces costs.
The X690 family supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing, including policy-based switching and routing. The X690 simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of Extreme's networking products. The high availability ExtremeXOS operating system reduces operational overhead through the use of a single OS across the network.
The X690 can handle a range of high bandwidth applications, including high-density 10Gb top of rack aggregation, as well as spine/leaf deployments as an edge leaf switch. With both copper and fiber high-density 10Gb port options, the X690 can flexibly accommodate a variety of data center needs. It can also flexibly support uplinks at 25Gb, 40Gb, 50Gb or even 100Gb rates. A range of SFP+ and QSFP+ optical transceivers are available to support 1Gb, 10Gb and 40Gb Ethernet, while QSFP28 optical transceivers can be used to support 25Gb, 50Gb, and 100Gb Ethernet applications.
The X690 supports SummitStack-V400 400Gbps high speed stacking using 2 100Gb ports, along with other switches. Up to eight (8) X590, X690, and X870 systems can be stacked using SummitStack-V400. Any of the supported 100Gb QSFP28 direct attach cables can be used for the stacking links.
