Half-Duplex to Full-Duplex Converter
Enable half-duplex connections with older Ethernet devices
Product Highlights
Highlights
Performance
- Line-rate conversion of four 10/100Mb half-duplex ports to 10/100/1000Mb full-duplex
- Line-rate conversion of four 10/100/1000Mb full-duplex ports to 10/100Mb half-duplex
Features
- Fan-less device
- External power brick
- 0⁰C to 40⁰C operating range
- Half-duplex support on four 10/100Mb user ports
- Full-duplex support on four 10/100/1000Mb switch ports
- IEEE 802.az EEE
The Half-Duplex to Full-Duplex Converter can be used in conjunction with full-duplex switches to provide 10/100Mb half-duplex connections to older Ethernet devices.
Benefits
Many high-speed switches today do not support half-duplex connections that some older Ethernet devices support exclusively. This converter enables those older half-duplex devices to be connected to modern high-speed switches that only support full-duplex.

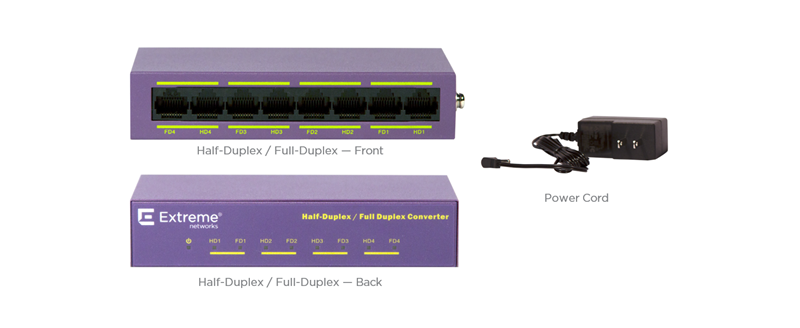

The converter has four half-duplex user ports that support 10/100Mb half-duplex connections and four 10/100/1000Mb full-duplex ports for connecting to the modern switch. All buffering and speed/duplex conversion is handled by the external converter.
The converter is an unmanaged device. It does not have a console port nor can it be managed via any of its Ethernet ports. As an unmanaged device, network collisions and other half-duplex statistics on the half-duplex ports are not reported to the full-duplex switch ports. Therefore, network monitoring of the half-duplex ports is not supported.
The converter is powered via a small external power brick. There is one power brick for the North American market (NEMA 1-15P) and another power brick for the rest of the world (CEE 7/1). Therefore there are two different ordering numbers.
Note: The Half-Duplex to Full-Duplex Converter is not certified for sale in the following countries: China, Taiwan, Korea, Brazil, Russia.
